Generate Voronoi colony mesh

We import the lloyd_relaxation_class to generate a Voronoi diagram.

import numpy as np
from scipy.spatial import Voronoi, voronoi_plot_2d
import matplotlib.pyplot as plt
import sys
import pylab
sys.path.insert(0, '../DLITE/')
from Lloyd_relaxation_class import Atlas
from DLITE.SaveSurfEvolFile import SaveFile
P = np.random.random((6000,2))

Let’s instantiate this class with 6000 points

gg = Atlas(points = P, dimensions = (6000,2))

Now we can generate a Voronoi diagram

vor = gg.generate_voronoi()

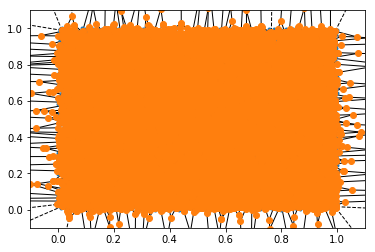

fig = voronoi_plot_2d(vor)

We want to try to make Voronoi cells roughly equal in size. Otherwise a single cell can be significantly larger than another.

vor2 = gg.relax_points(times = 180)

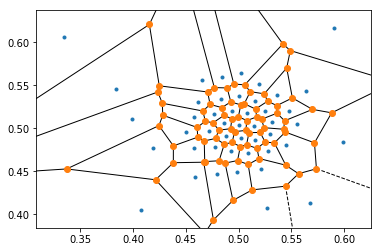

fig = voronoi_plot_2d(vor2)

vor = vor2

Now we can save this file in a format that is readable by Surface Evolver

We do this using the SaveSurfEvolFile class in DLITE

savefile = SaveFile('class_test_16.fe', vor)

savefile.save()

Now, we’ve saved the file in this directory. You can add a gogo3 function to the end of the .txt file using the command below

savefile.add_gogo3(0.1, 30, 50)

This will set the tension of all edges labelled 30-50 to 0.1
